Dea Diana S

Terug

When you want to go subtle, you have to go trimless. The Dea Diana, named after the moon goddess, offers a whole new lighting experience. The deep module, elegant looks and endless range of applications guarantee a refined look. Choose for a black or white housing and simply add a reflector in the colour of your choice. The standard installation frame is single, but you can choose also for a duo, triple, quadruple or quadruple square application. On request available in 24°.

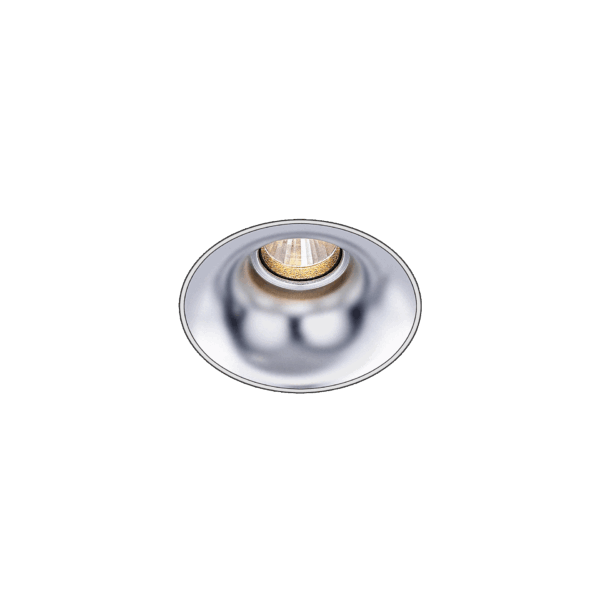

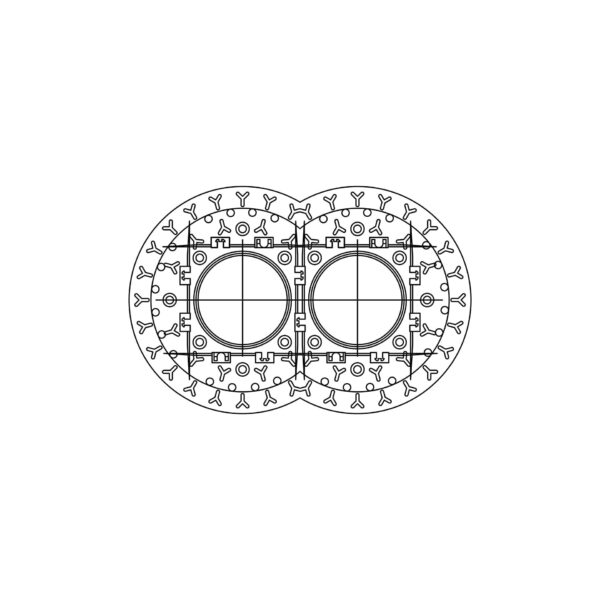

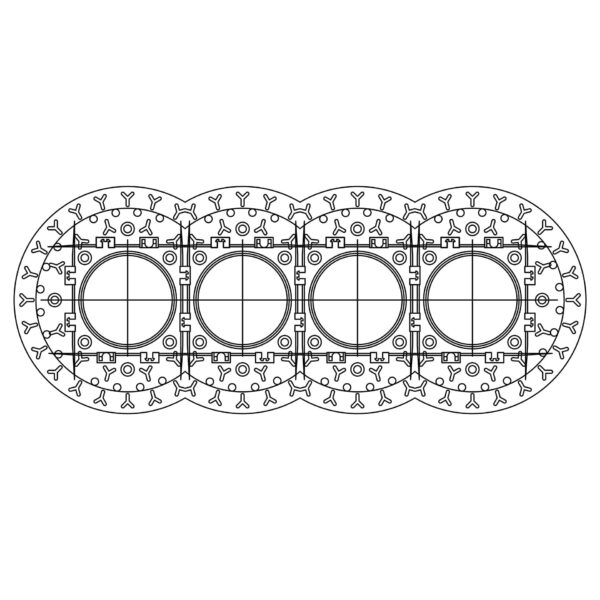

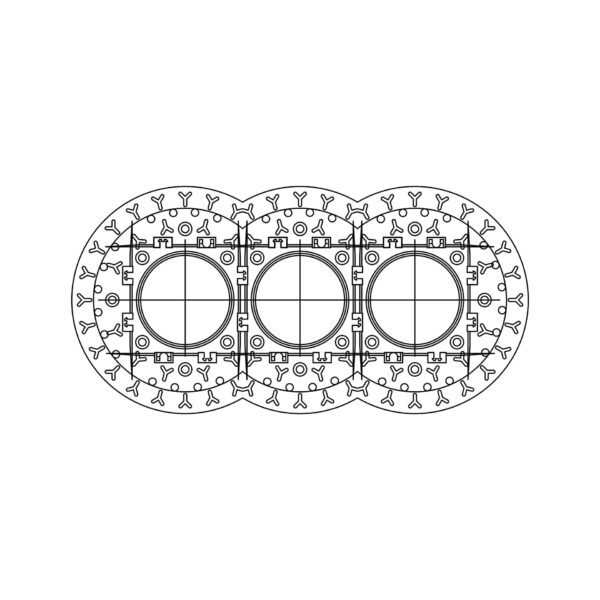

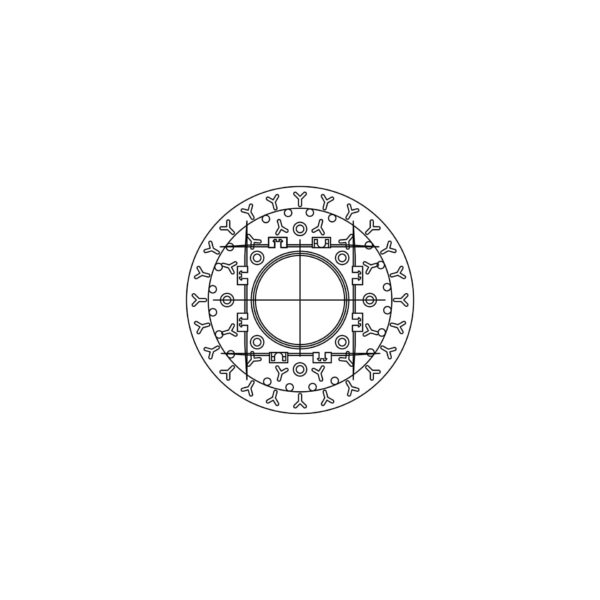

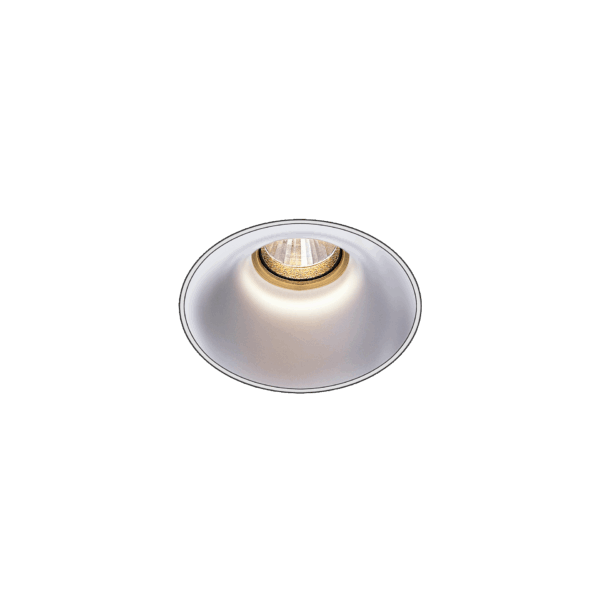

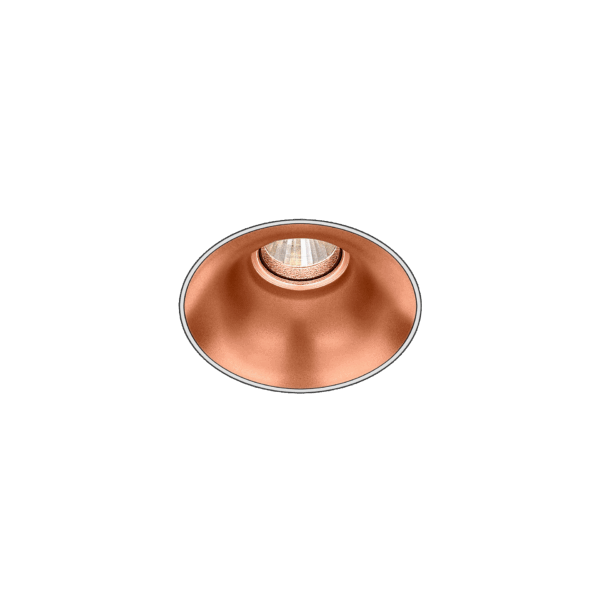

The Karizma Luce Dea Diana S is a trimless recessed fixed spot from the Dea Della Luce series. Made from aluminium. Available luminaire flux: in range 760- 960 lm. CCT: 2700K, 3000K, 4000K. Beam angle: 40°. On request available in 24°. Luminaire available in black and white. The reflectors can be changed in case of wish or need, because they are fixed by a magnet. The standard installation frame is single, but you can choose also for a duo, triple or quadruple square application. Just by cutting the sides of the frames and connect them to each other. In this way, the Dea Diana always meets your wishes. Available reflector colours: Silver High Gloss, Black High Gloss, Chrome, White, Gold, Copper, Black Matt. Supplied with installation frame, extra frames have to be ordered separately (article number: TL-S-F-KIT).

Omdat er bij deze Karizma spots vele opties mogelijk zijn, leveren we deze alleen op bestelling.
Neem hiervoor contact met ons op.

Handleiding Teschnische tekening

Artikelnummer: 220 Categorie:
  • De gekozen zet is incl. driver en spots. Dit kan worden aangesloten op een geschakeld stopcontact.
    Aan/uit driver. Bij een set wordt een eenvoudige aan/uit driver meegeleverd, geschikt voor gebruik met een geschakeld stopcontact.
    Let op: deze driver is niet dimbaar aan de primaire zijde.

  • De gekozen zet is incl. driver en spots. Hier is alleen nog een bij RL dimmer nodig. RL dimbare driver. Drivers die gebruik maken van fase aansnijding (triac) en faseafsnijding (ELV). Ook wel leading edge en trailing edge genoemt. Om te kunnen dimmen via uw eigen RL(C) (triac) dimmer. O.a. muurdimmer, dimactor, etc.
  • Bijv. 'Keuken kanaal 1' of  'Commissie Jansen'


    Let op!
    Het aantal hieronder geldt voor alles wat je hierboven hebt geselecteerd. Vul je bijvoorbeeld ‘2’ in, dan ontvang je alles hierboven ×2.
    Deze functie is vooral handig bij losse artikelen of eenvoudige sets.

Kleur armatuur/profiel

Black, White

LED kleur

2700K, 3000K, 4000K

Reflector kleur

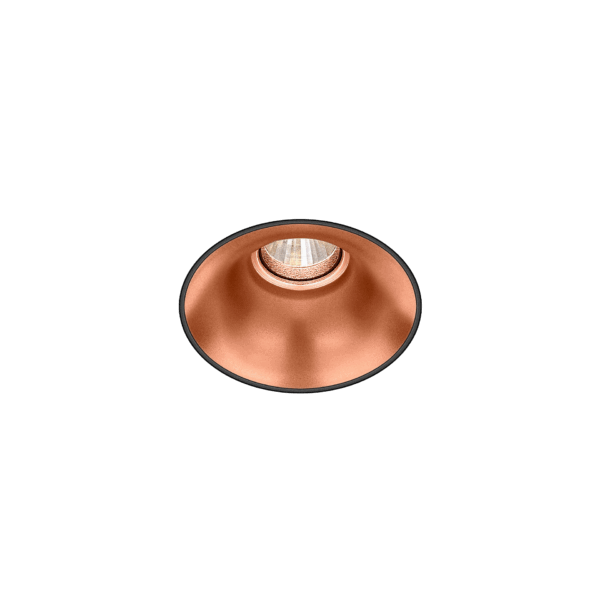

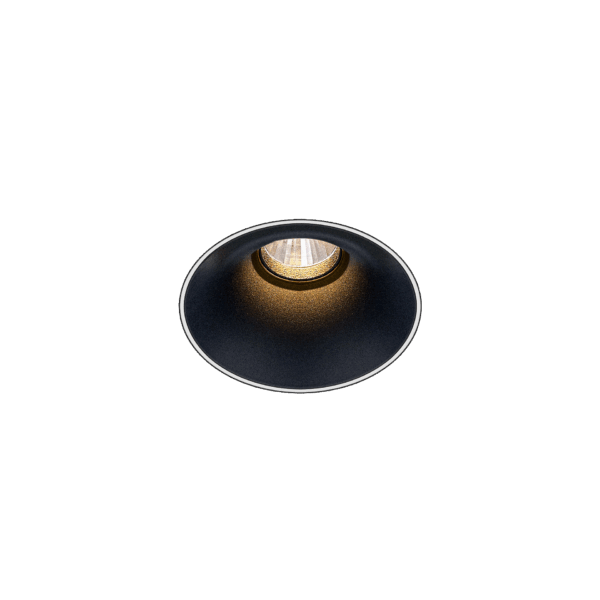

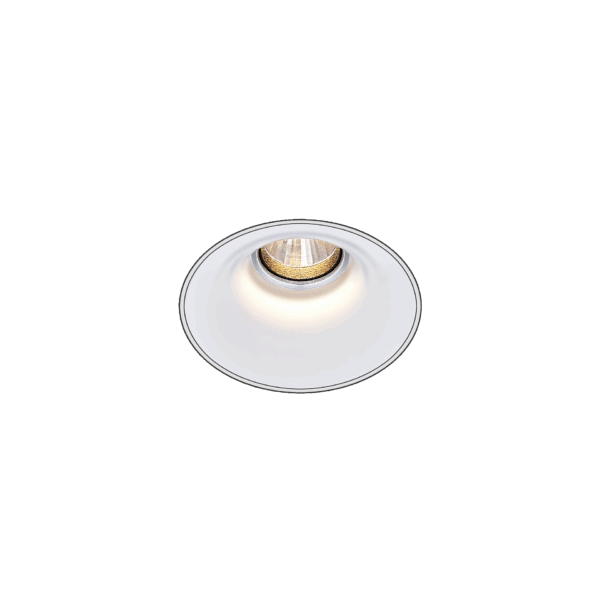

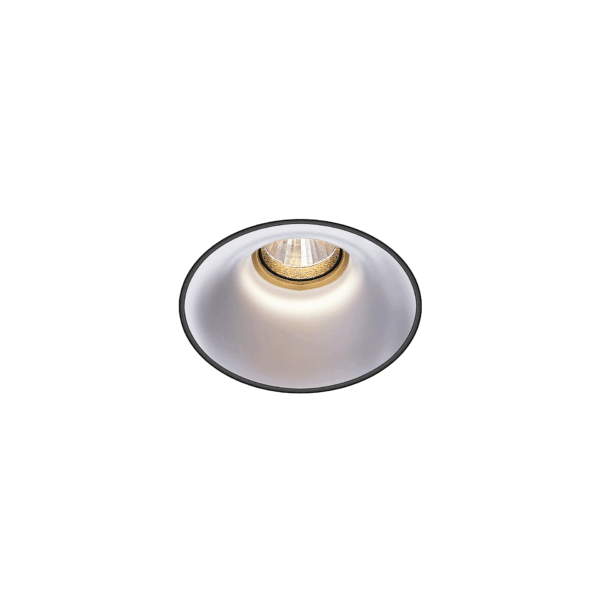

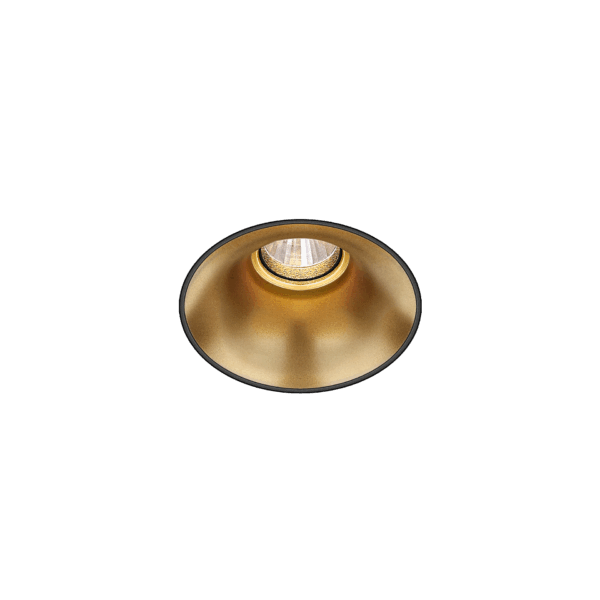

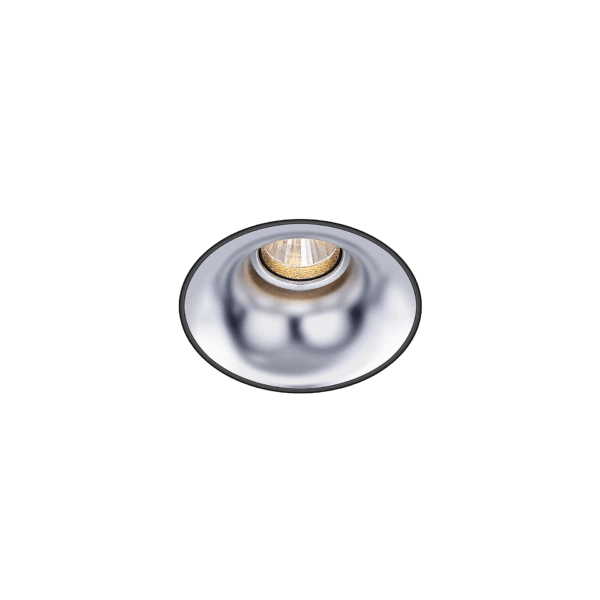

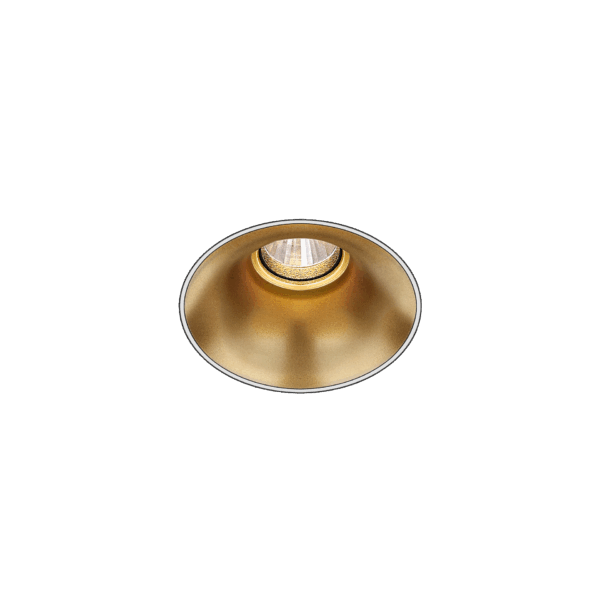

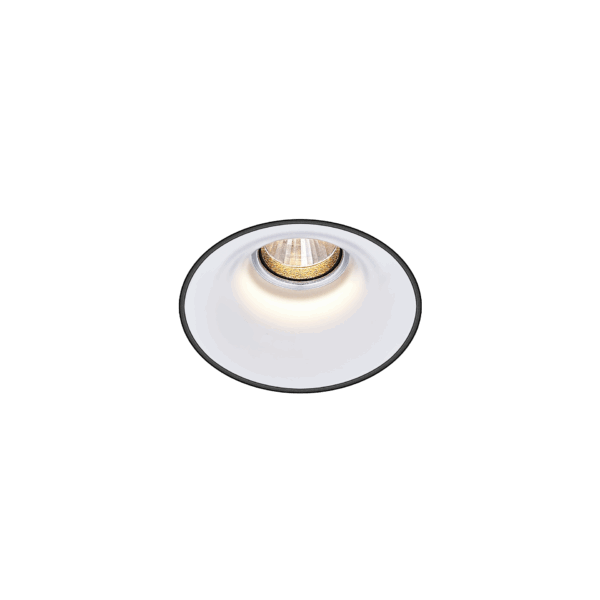

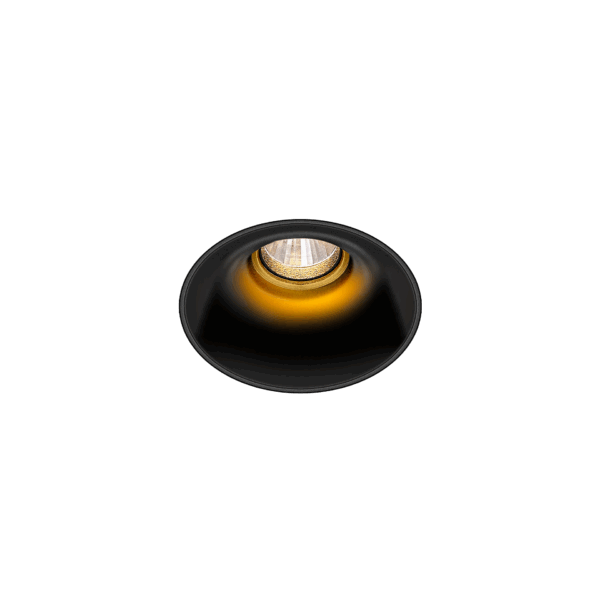

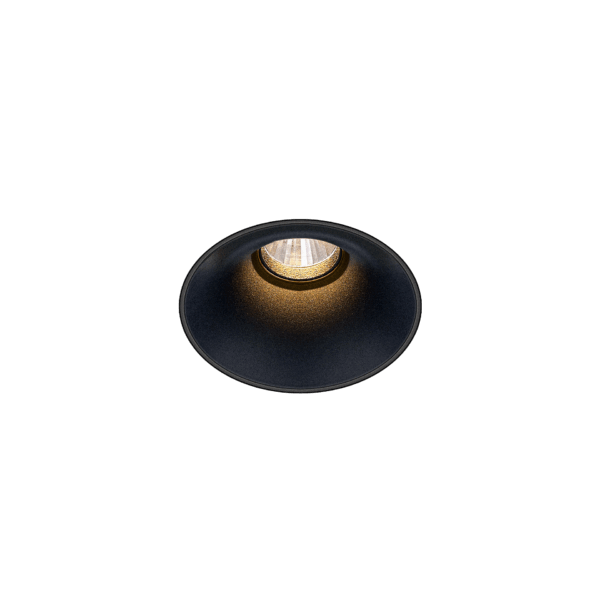

Black High Gloss, Black Matt, Chrome, Copper, Gold, Silver High Gloss, White

Gradenbundel

40°

Lumen

760 lm, 800 lm, 810 lm, 830 lm, 840 lm, 860 lm, 870 lm, 880 lm, 890 lm, 900 lm, 930 lm, 940 lm, 950 lm, 960 lm

IP waarde

IP20

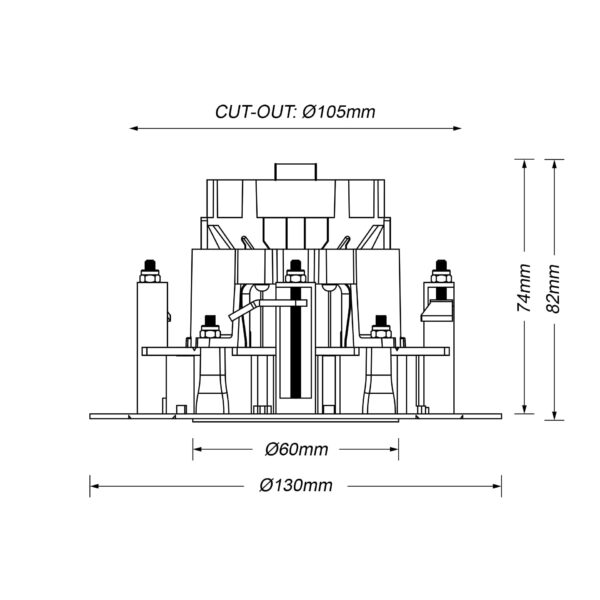

Afmetingen

Ø130x74mm

Inbouwhoogte

100mm

Gat maat

Ø105mm

Wattage

8.5W

Ouput

250mA

Voltage lichtbron

33.2V

Soort spot

Inbouw vast

Optie

Trimless

×
